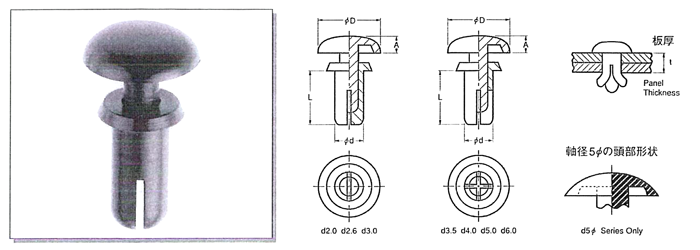

| 品番 | 色 | 穴径 φ | 板厚 t | φd | L | φD | A | 抜去力 （以上） |
|---|---|---|---|---|---|---|---|---|
| P2024 | W・B | 2.1 | 0.6～1.2 | 2.0 | 2.4 | 4.2 | 1.2 | 29N |
| P2032 | W・B | 2.1 | 1.3～2.0 | 2.0 | 3.2 | 4.2 | 1.2 | 29N |
| P2040 | W・B | 2.1 | 2.1～2.8 | 2.0 | 4.0 | 4.2 | 1.2 | 29N |
| P2048 | W・B | 2.1 | 2.9～3.6 | 2.0 | 4.8 | 4.2 | 1.2 | 29N |
| P2064 | W・B | 2.1 | 4.5～5.2 | 2.0 | 6.4 | 4.2 | 1.2 | 34N |
| P2632 | W・B | 2.7 | 1.0～2.0 | 2.6 | 3.2 | 5.0 | 1.4 | 49N |
| P2642 | W・B | 2.7 | 2.1～3.0 | 2.6 | 4.2 | 5.0 | 1.4 | 49N |
| P2648 | W・B | 2.7 | 2.7～3.6 | 2.6 | 4.8 | 5.0 | 1.4 | 49N |
| P2655 | W・B | 2.7 | 3.4～4.3 | 2.6 | 5.5 | 5.0 | 1.4 | 49N |
| P3035 | W・B | 3.1 | 1.0～2.0 | 3.0 | 3.5 | 6.4 | 1.6 | 78N |
| P3045 | W・B | 3.1 | 2.0～3.0 | 3.0 | 4.5 | 6.4 | 1.6 | 78N |
| P3055 | W・B | 3.1 | 3.0～4.0 | 3.0 | 5.5 | 6.4 | 1.6 | 78N |
| P3065 | W・B | 3.1 | 4.0～5.0 | 3.0 | 6.5 | 6.4 | 1.6 | 78N |
| P3075 | W・B | 3.1 | 5.0～6.0 | 3.0 | 7.5 | 6.4 | 1.6 | 78N |
| P3080 | W・B | 3.1 | 5.5～6.5 | 3.0 | 8.0 | 6.4 | 1.6 | 78N |
| P3090 | W・B | 3.1 | 6.5～7.5 | 3.0 | 9.0 | 6.4 | 1.6 | 78N |
| P3100 | W・B | 3.1 | 7.5～8.5 | 3.0 | 10.0 | 6.4 | 1.6 | 78N |
| P3535 | W・B | 3.6 | 1.2～2.1 | 3.5 | 3.5 | 6.4 | 1.6 | 118N |
| P3545 | W・B | 3.6 | 2.2～3.1 | 3.5 | 4.5 | 6.4 | 1.6 | 118N |
| P3550 | W・B | 3.6 | 2.7～3.6 | 3.5 | 5.0 | 6.4 | 1.6 | 118N |
| P3555 | W・B | 3.6 | 3.2～4.1 | 3.5 | 5.5 | 6.4 | 1.6 | 118N |
| P3560 | W・B | 3.6 | 3.7～4.6 | 3.5 | 6.0 | 6.4 | 1.6 | 118N |
| P3570 | W・B | 3.6 | 4.7～5.6 | 3.5 | 7.0 | 6.4 | 1.6 | 118N |
| P3580 | W・B | 3.6 | 5.7～6.6 | 3.5 | 8.0 | 6.4 | 1.6 | 118N |
| P4040 | W・B | 4.1 | 1.4～2.4 | 4.0 | 4.0 | 8.0 | 1.8 | 196N |
| P4050 | W・B | 4.1 | 2.5～3.5 | 4.0 | 5.0 | 8.0 | 1.8 | 196N |
| P4060 | W・B | 4.1 | 3.5～4.5 | 4.0 | 6.0 | 8.0 | 1.8 | 196N |
| P4070 | W・B | 4.1 | 4.5～5.5 | 4.0 | 7.0 | 8.0 | 1.8 | 196N |
| P4080 | W・B | 4.1 | 5.5～6.5 | 4.0 | 8.0 | 8.0 | 1.8 | 196N |
| P4090 | W・B | 4.1 | 6.5～7.5 | 4.0 | 9.0 | 8.0 | 1.8 | 196N |
| P4100 | W・B | 4.1 | 7.5～8.5 | 4.0 | 10.0 | 8.0 | 2.2 | 196N |
| P4120 | W・B | 4.1 | 9.5～10.5 | 4.0 | 12.0 | 8.0 | 1.8 | 196N |
| P5045 | W・B | 5.1 | 1.5～2.5 | 5.0 | 4.5 | 9.0 | 2.2 | 245N |
| P5055 | W・B | 5.1 | 2.5～3.5 | 5.0 | 5.5 | 9.0 | 2.2 | 245N |
| P5065 | W・B | 5.1 | 3.5～4.5 | 5.0 | 6.5 | 9.0 | 2.2 | 245N |
| P5075 | W・B | 5.1 | 4.5～5.5 | 5.0 | 7.5 | 9.0 | 2.2 | 245N |
| P5085 | W・B | 5.1 | 5.5～6.5 | 5.0 | 8.5 | 9.0 | 2.2 | 245N |
| P5095 | W・B | 5.1 | 6.5～7.5 | 5.0 | 9.5 | 9.0 | 2.2 | 245N |
| P5105 | W・B | 5.1 | 7.5～8.5 | 5.0 | 10.5 | 9.0 | 2.2 | 245N |
| P6060 | W・B | 6.1 | 2.5～4.0 | 6.0 | 6.0 | 12.0 | 2.5 | 294N |
| P6080 | W・B | 6.1 | 4.0～5.5 | 6.0 | 8.0 | 12.0 | 3.0 | 294N |
